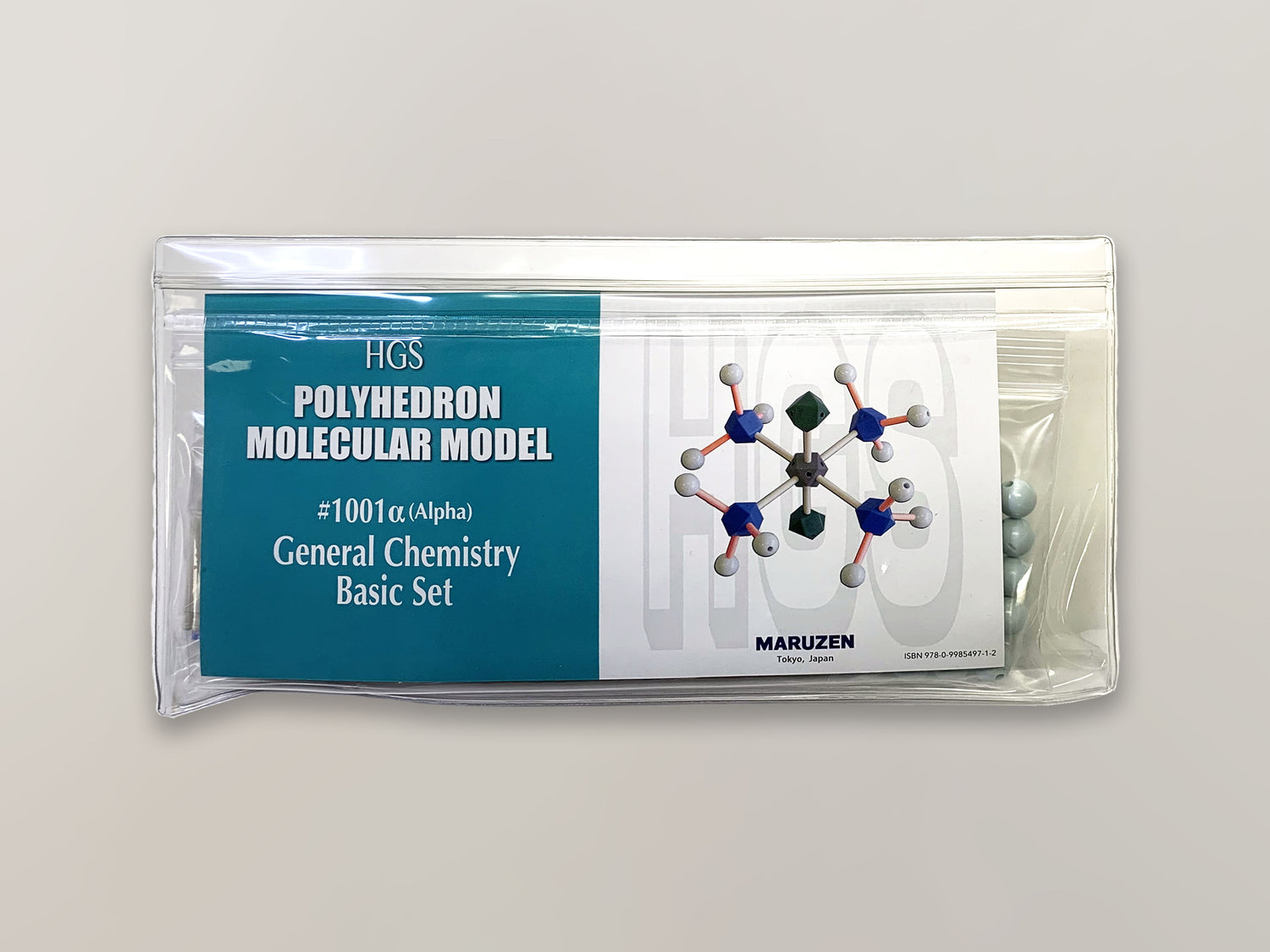

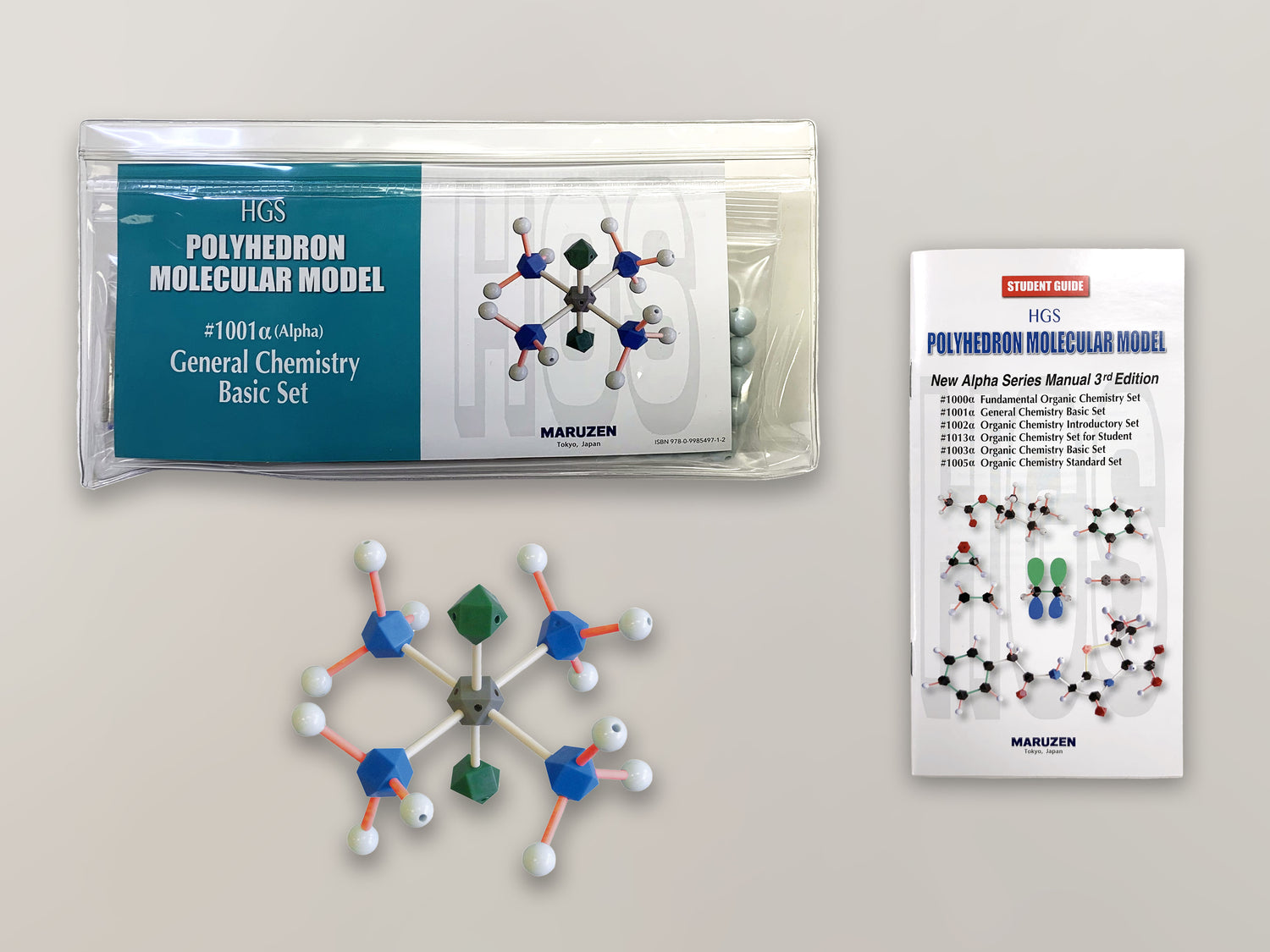

1001Alpha General Chemistry Basic Set + Student Guide

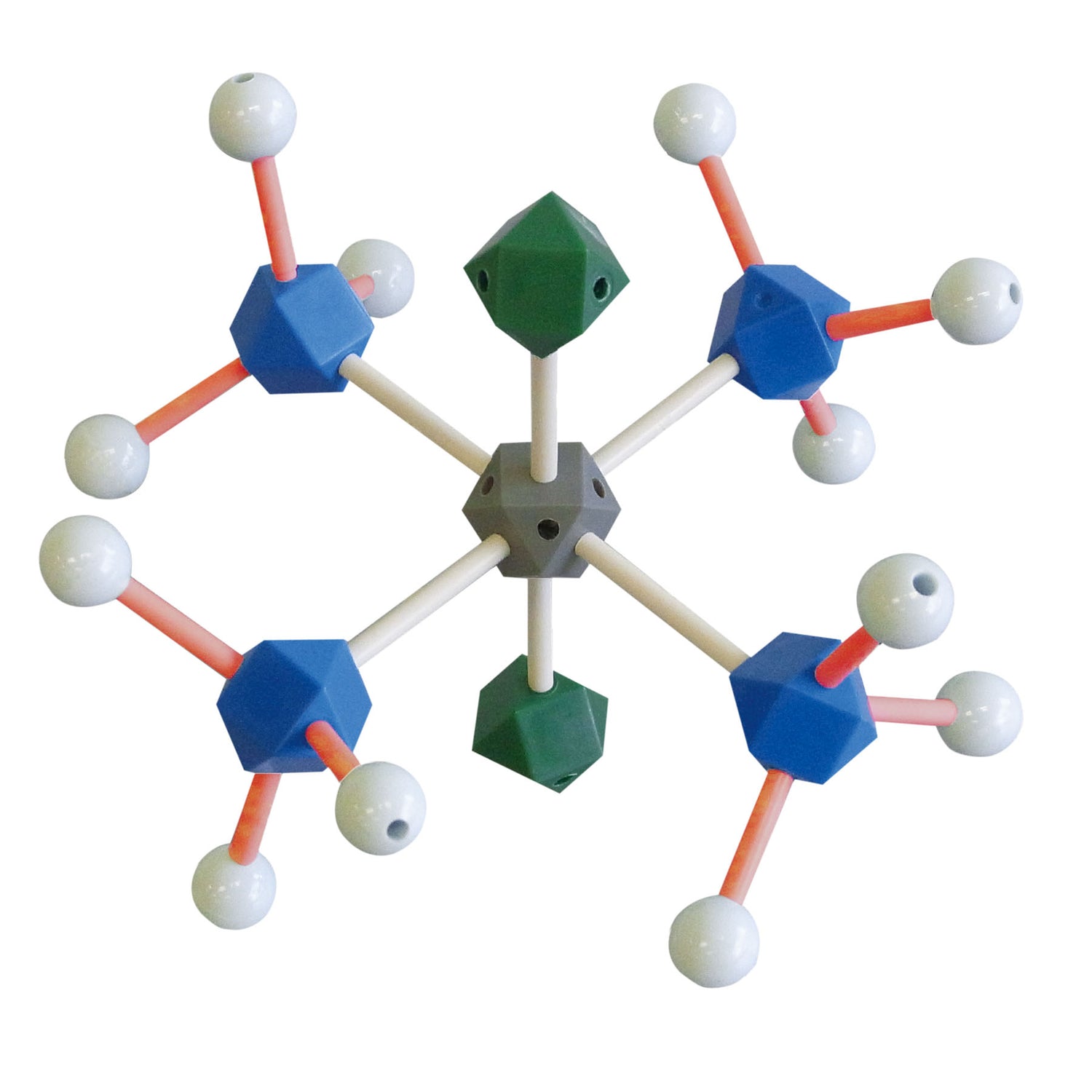

This is the general chemistry basic set of the polyhedron molecular models, and is useful for constructing fundamental organic compounds and also some octahedral metal complexes. Thus, this set is useful for studying inorganic compounds.
- Regular price
- $17.00
- Regular price
-
- Sale price
- $17.00
- Unit price
- / per
Couldn't load pickup availability
Contents
Atom
Bond(1Å = 2.5cm)
Item No. | Bond Length (Å) | Color | Use | Qty |
---|---|---|---|---|
BND-02 |
1.092 1.213 |
pink
|
C-H C≡C,C=O |
25 |
BND-06 | 1.54 |
white
|
C-C,S-O | 20 |
BND-101 | 1.33 |
blue
|
C=C | 6 |
2 In the case of C-(#2 bond)-H, bond length = 1.09Å.
3 In the case of C-(#2 bond)-(non-H atom), bond length = 1.21Å.
1 Bent bond.
Tool
All sets contain 1 bond puller that can be used to remove the bonds from the atoms.
The #1003α and #1005α sets contain 1 ruler (1Å = 100 pm = 2.5cm).
Product Comparison
Atom
Item No. | Atom Name | Color | Use | Quantity | |||||
---|---|---|---|---|---|---|---|---|---|
1000α | 1001α | 1002α | 1003α | 1013α | 1005α | ||||
ATM-01 | H |
white
|
s | 30 | 24 | 24 | 30 | 30 | 72 |
ATM-11 | B |
orange
|
sp², dsp³ | - | - | - | - | - | 1 |
ATM-02 | C |
black
|
sp³ | 12 | 12 | 12 | 28 | 12 | 46 |
ATM-09 | C |
black
|
sp², dsp³ | - | 3 | - | 12 | 6 | 20 |
ATM-03 | N |
blue
|
sp³ | 2 | 6 | 2 | 3 | 1 | 5 |
ATM-10 | N |
blue
|
sp², dsp³ | - | - | - | 3 | 1 | 5 |
ATM-04 | O |
red
|
sp³ | 6 | 2 | 2 | 7 | 4 | 12 |
ATM-05 | Si |
yellowgreen
|
sp³ | - | - | - | - | - | 1 |
ATM-06 | P |
yellow
|
sp³ | - | - | - | 1 | - | 2 |
ATM-07 | S |
pink
|
sp³ | - | - | - | 1 | 1 | 2 |
ATM-08 | Cl |
green
|
sp³ | 2 | 2 | - | 2 | 1 | 4 |
ATM-17 | m |
gray
|
sp, sp³, d²sp³ | - | 3 | 1 | 2 | 2 | 4 |
Bond
Item No. | Bond Length | Color | Use | Quantity | |||||
---|---|---|---|---|---|---|---|---|---|
1000α | 1001α | 1002α | 1003α | 1013α | 1005α | ||||
BND-02 |
1.092 1.213 |
pink
|
C-H C≡C,C=O |
30 | 25 | 25 | 30 | 30 | 72 |
BND-04 | 1.40 |
green
|
C=C,C-O, C(ar)=C(ar) |
- | - | - | 16 | 8 | 38 |
BND-06 | 1.54 |
white
|
C-C,S-O | 20 | 20 | 20 | 40 | 24 | 72 |
BND-07 | 1.80 |
yellow
|
C-P, C-Cl,C-S |
- | - | - | 8 | 2 | 20 |
BND-09 | 2.10 |
white
|
C-I | - | - | - | - | - | 2 |
BND-101 | 1.33 |
blue
|
C=C | 12 | 6 | 6 | 12 | 10 | 30 |
2 In the case of C-(#2 bond)-H, bond length = 1.09Å.
3 In the case of C-(#2 bond)-(non-H atom), bond length = 1.21Å.
1 Bent bond.
Orbital-Plate
Item No. | Name | Shape | Color | Bond Radius | Bond Angle | Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
4010 | 4000 | 7000 | |||||||||
ORG-17 | Hydrogen |
![]() |
white
|
0.33 Å | 40 | 80 | 240 | ||||
ORG-19 |
Hydrogen (for H-bond) |
![]() |
white
|
1.50 Å | - | 5 | 10 | ||||
ORG-1 | sp³ Carbon |
![]() |
black
|
0.77 Å | 109.47° | 25 | 50 | 150 | |||
ORG-5 | sp² Carbon |
![]() |
black
|
0.70 Å | 120° | 12 | 24 | 60 | |||
ORG-24 | sp Carbon |
![]() |
black
|
0.60 Å | 180° | 2 | 4 | 12 | |||
ORG-2 | sp³ Nitrogen |
![]() |
blue
|
0.77 Å | 109.47° | 3 | 6 | 18 | |||
ORG-6 | sp² Nitrogen |
![]() |
blue
|
0.70 Å | 120° | 2 | 5 | 15 | |||
ORG-12 | Single bond Oxygen |
![]() |
red
|
0.66 Å | 109.47° | 8 | 15 | 40 | |||
ORG-15-1 | Double bond Oxygen |
![]() |
red
|
0.62 Å | 3 | 6 | 27 | ||||
ORG-14 | Double bond Oxygen (H-bonded) |
![]() |
red
|
0.54 Å 0.66 Å |
- | 5 | 10 | ||||
ORG-15-2 | Fluorine |
![]() |
brown
|
0.62 Å | - | - | 6 | ||||
ORG-4-2 | sp³ Silicon |
![]() |
yellowgreen
|
1.05 Å | 109.47° | - | - | 4 | |||
ORG-4 | sp³ Phosphorus |
![]() |
yellow
|
1.05 Å | 109.47° | - | 2 | 6 | |||
ORG-4-1 | sp³ Sulfur |
![]() |
pink
|
1.05 Å | 109.47° | - | 2 | 6 | |||
ORG-16-1 | Chlorine |
![]() |
green
|
0.99 Å | - | 4 | 12 | ||||
ORG-16-2 | Bromine |
![]() |
purple
|
(0.99 Å) | - | - | 5 | ||||
ORG-16-3 | Iodine |
![]() |
white
|
(0.99 Å) | - | - | 5 | ||||
ORG-18-A-1 | Octahedral Metal |
![]() |
gray
|
90° 109°28' 125°16' |
- | 2 | 5 | ||||
ORG-18-B-1 | Bond for 18-A-1 |
![]() |
gray
|
1.20 Å | - | 12 | 30 | ||||
ORG-23-1 | Cyclopropane |
![]() |
black
|
0.77 Å | 60° | - | 1 | 3 | |||
ORG-23-3 | Aziridine |
![]() |
blue
black
|
0.77 Å | 60° | - | - | 2 | |||
ORG-23-2 | Epoxide |
![]() |
red
black
|
0.77 Å | 60° | - | 1 | 4 | |||
ORG-20 | Connector |
![]() |
black
|
25 | 60 | 150 | |||||
ORG-21 | Double bond lock |
![]() |
transparent
|
3 | 12 | 25 | |||||
ORG-22 | Bond puller |
![]() |
black
|
1 | 1 | 5 |
