1003Alpha Organic Chemistry Basic Set <2nd Edition> + Student Guide

Name: 1003Alpha Organic Chemistry Basic Set + Student Guide
Brand: HGS Maruzen
SKU: 1003Alpha
Price: 28.0 USD
Availability: InStock

Click this image to view the manual

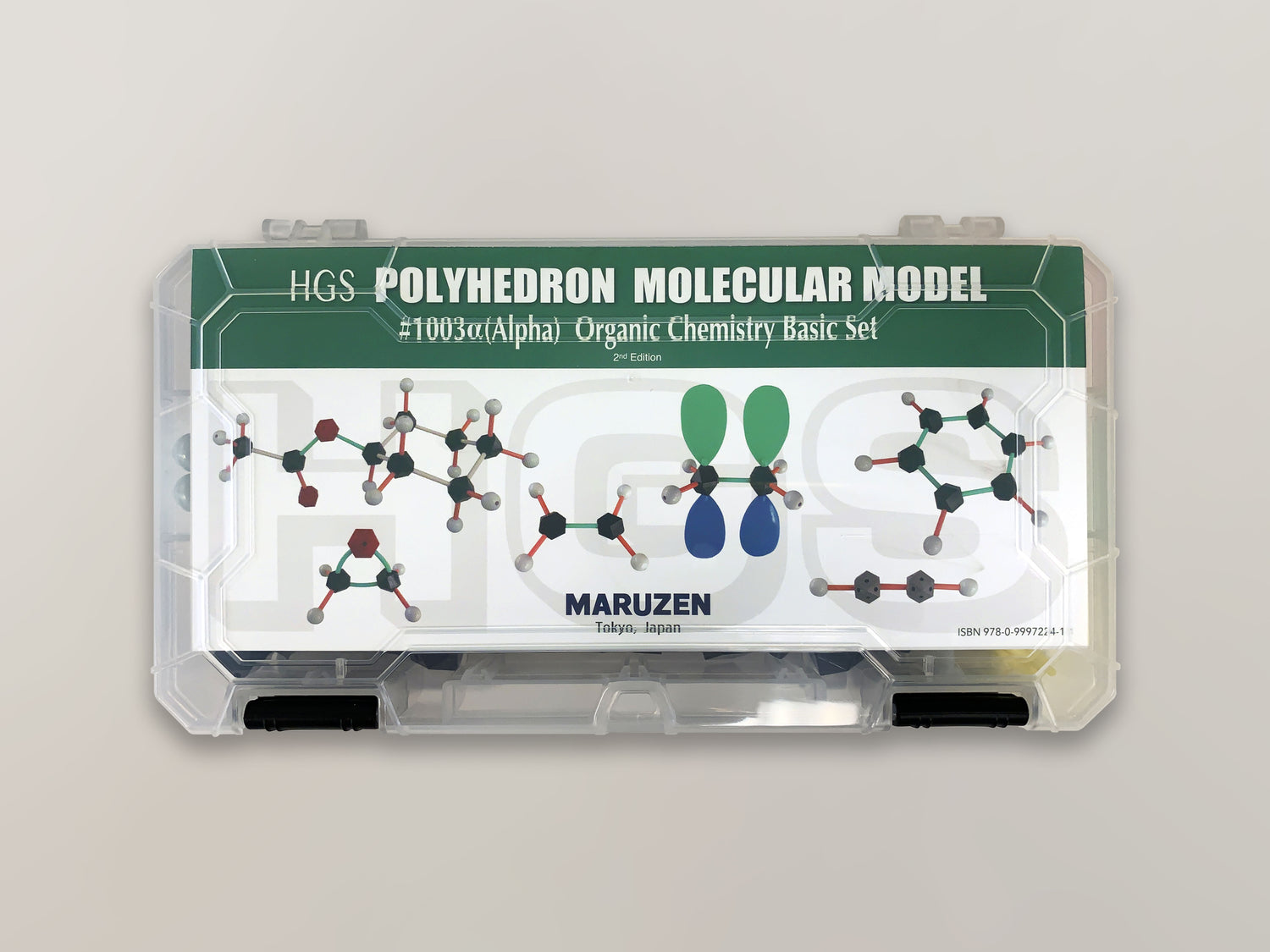

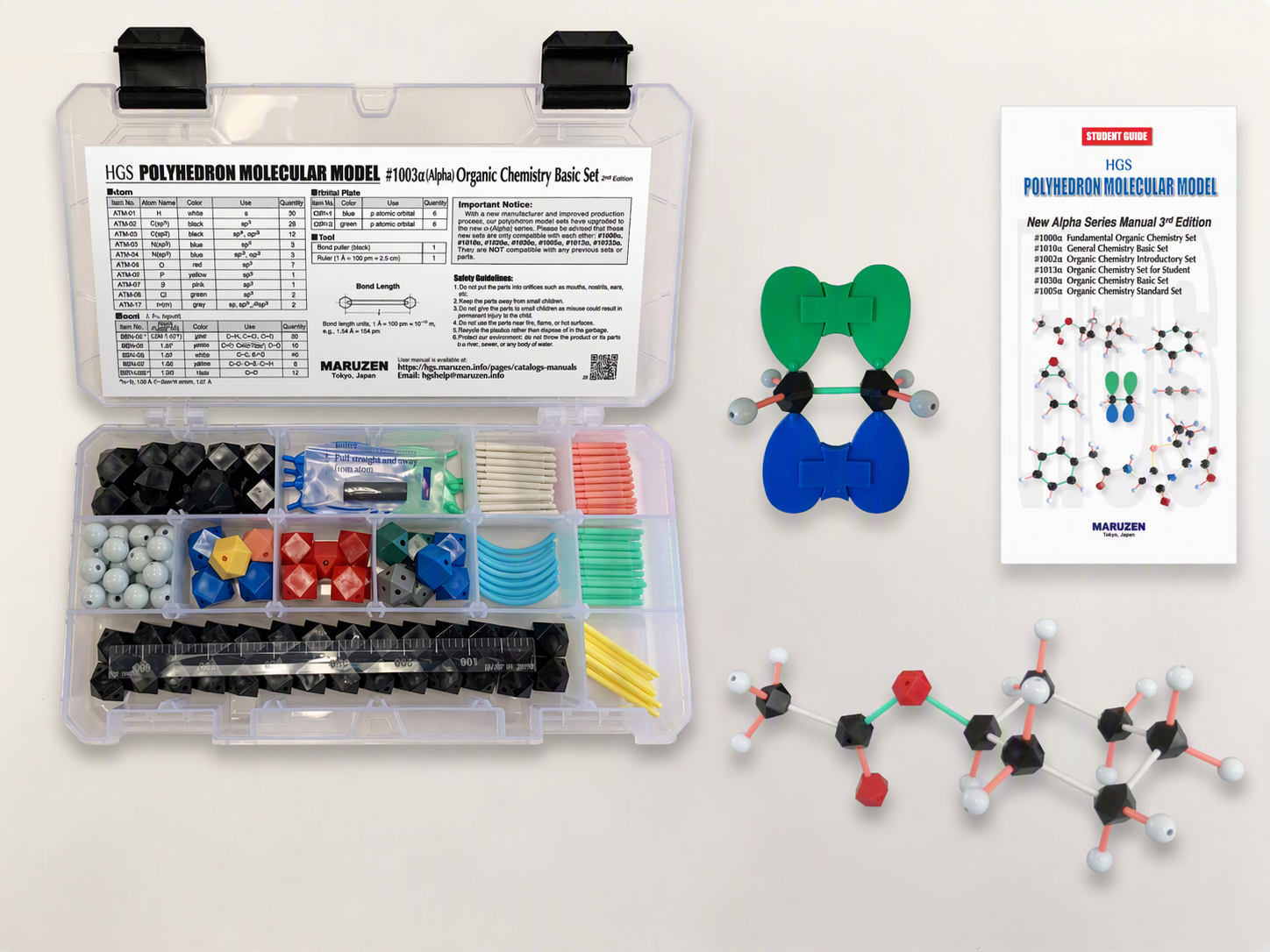

This is the organic chemistry basic set of the polyhedron molecular models. This set contains most atoms and bonds used for constructing most organic compounds such as alkanes, alkenes, alkynes, aromatics, alcohols, ketones, esters, amines, amides etc. In addition, P, S, and octahedral metal atoms are also included, and hence it is possible to construct compounds containing such atoms.

It is great that this set contains the p-atomic orbital plates (4 blue plates and 4 green plates), which are very useful for studying the π-molecular orbitals of olefin compounds, e.g. HOMO (highest occupied molecular orbital) and LUMO (lowest unoccupied molecular orbital).

Regular price: $28.00
Regular price
Sale price: $28.00
Unit price: per

Product variants

Atom

Item No.	Atom Name	Color	Use	Qty
ATM-01	H	white	s	30
ATM-02	C	black	sp³	28
ATM-09	C	black	sp², dsp³	12
ATM-03	N	blue	sp³	3
ATM-10	N	blue	sp², dsp³	3
ATM-04	O	red	sp³	7
ATM-06	P	yellow	sp³	1
ATM-07	S	pink	sp³	1
ATM-08	Cl	green	sp³	2
ATM-17	m	gray	sp, sp³, d²sp³	2

Bond(1Å = 2.5cm)

Item No.	Bond Length (Å)	Color	Use	Qty
BND-02	1.092 1.213	pink	C-H C≡C,C=O	30
BND-04	1.40	green	C=C,C-O, C(ar)=C(ar)	16
BND-06	1.54	white	C-C,S-O	40
BND-07	1.80	yellow	C-P, C-Cl,C-S	8
BND-101	1.33	blue	C=C	12

2 In the case of C-(#2 bond)-H, bond length = 1.09Å.
3 In the case of C-(#2 bond)-(non-H atom), bond length = 1.21Å.
1 Bent bond.

Orbital Plate

Item No.	Color	Use	Qty
OBP-1	blue	p-atomic orbital	4
OBP-2	green	p-atomic orbital	4

Tool

All sets contain 1 bond puller that can be used to remove the bonds from the atoms.
The #1003α and #1005α sets contain 1 ruler (1Å = 100 pm = 2.5cm).

Product Comparison

Atom

Item No.	Atom Name	Color	Use	Quantity
Item No.	Atom Name	Color	Use	1000α	1001α	1002α	1003α	1013α	1005α
ATM-01	H	white	s	30	24	24	30	30	72
ATM-11	B	orange	sp², dsp³	-	-	-	-	-	1
ATM-02	C	black	sp³	12	12	12	28	12	46
ATM-09	C	black	sp², dsp³	-	3	-	12	6	20
ATM-03	N	blue	sp³	2	6	2	3	1	5
ATM-10	N	blue	sp², dsp³	-	-	-	3	1	5
ATM-04	O	red	sp³	6	2	2	7	4	12
ATM-05	Si	yellowgreen	sp³	-	-	-	-	-	1
ATM-06	P	yellow	sp³	-	-	-	1	-	2
ATM-07	S	pink	sp³	-	-	-	1	1	2
ATM-08	Cl	green	sp³	2	2	-	2	1	4
ATM-17	m	gray	sp, sp³, d²sp³	-	3	1	2	2	4

Bond

Item No.	Bond Length	Color	Use	Quantity
Item No.	Bond Length	Color	Use	1000α	1001α	1002α	1003α	1013α	1005α
BND-02	1.092 1.213	pink	C-H C≡C,C=O	30	25	25	30	30	72
BND-04	1.40	green	C=C,C-O, C(ar)=C(ar)	-	-	-	16	8	38
BND-06	1.54	white	C-C,S-O	20	20	20	40	24	72
BND-07	1.80	yellow	C-P, C-Cl,C-S	-	-	-	8	2	20
BND-09	2.10	white	C-I	-	-	-	-	-	2
BND-101	1.33	blue	C=C	12	6	6	12	10	30

2 In the case of C-(#2 bond)-H, bond length = 1.09Å.
3 In the case of C-(#2 bond)-(non-H atom), bond length = 1.21Å.
1 Bent bond.

Orbital-Plate

Item No.	Color	Use	Quantity
Item No.	Color	Use	1000α	1001α	1002α	1003α	1013α	1005α
OBP-1	blue	p-atomic orbital	-	-	-	4	2	6
OBP-2	green	p-atomic orbital	-	-	-	4	2	6
OBC-1	blue	orbital connector	-	-	-	-	-	3
OBC-2	green	orbital connector	-	-	-	-	-	3

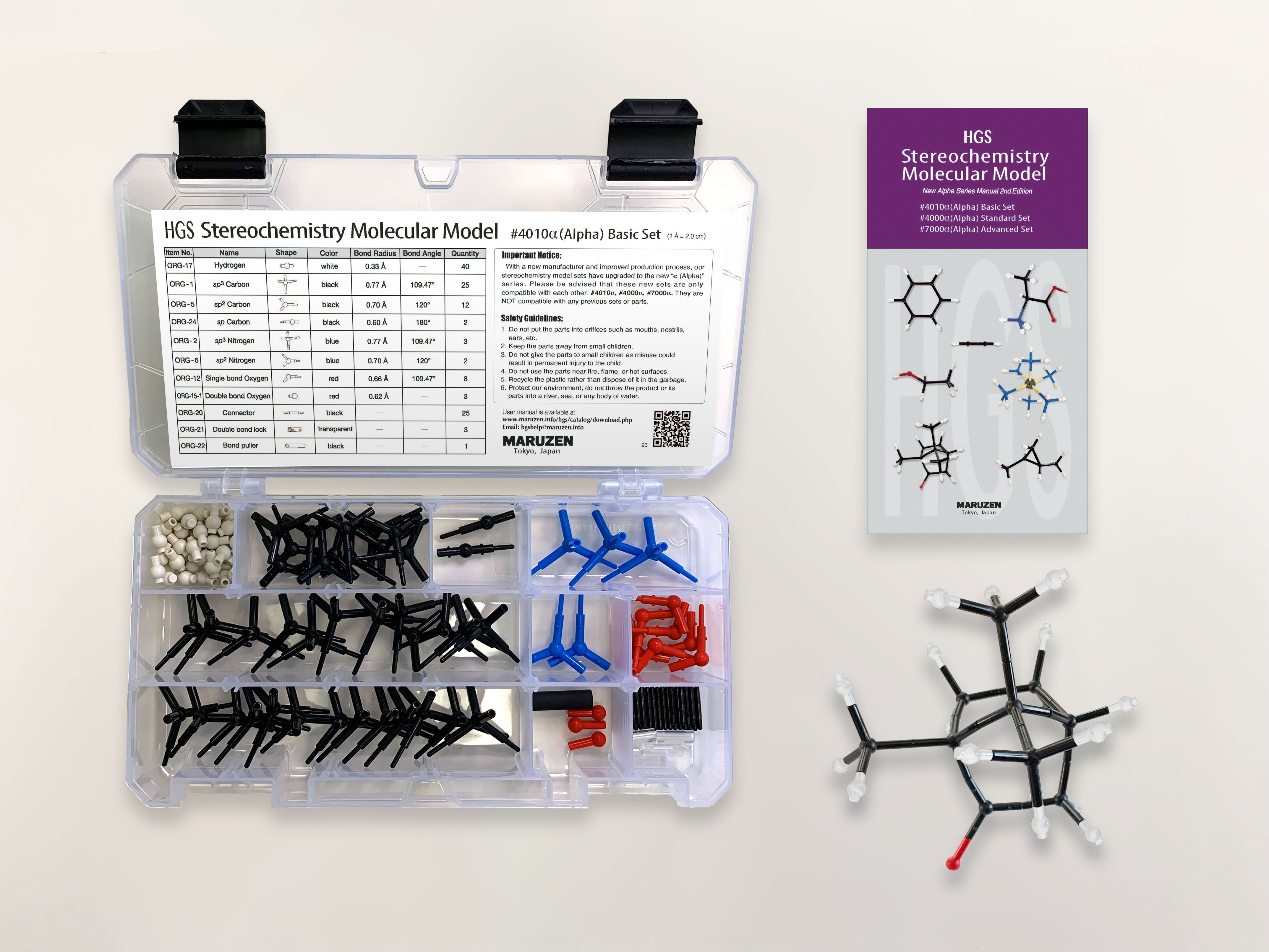

Item No.	Name	Shape	Color	Bond Radius	Bond Angle	Quantity
Item No.	Name	Shape	Color	Bond Radius	Bond Angle	4010	4000	7000
ORG-17	Hydrogen		white	0.33 Å		40	80	240
ORG-1	sp³ Carbon		black	0.77 Å	109.47°	25	50	150
ORG-5	sp² Carbon		black	0.70 Å	120°	12	24	60
ORG-24	sp Carbon		black	0.60 Å	180°	2	4	12
ORG-2	sp³ Nitrogen		blue	0.77 Å	109.47°	3	6	18
ORG-6	sp² Nitrogen		blue	0.70 Å	120°	2	5	15
ORG-12	Single bond Oxygen		red	0.66 Å	109.47°	8	15	40
ORG-15-1	Double bond Oxygen		red	0.62 Å		3	6	27
ORG-23-1	Cyclopropane		black	0.77 Å	60° 109.47°	-	1	3
ORG-23-2	Epoxide		red black	0.77 Å	60° 109.47°	-	1	4
ORG-23-3	Aziridine		blue black	0.77 Å	60° 109.47°	-	-	2
ORG-15-2	Fluorine		brown	0.62 Å		-	-	6
ORG-16-1	Chlorine		green	0.99 Å		-	4	6
ORG-16-2	Halogen ( Br or I )		purple	(0.99 Å)		-	-	6
ORG-4-2	sp³ Silicon		yellowgreen	1.05 Å	109.47°	-	-	4
ORG-4	sp³ Phosphorus		yellow	1.05 Å	109.47°	-	2	6
ORG-4-1	sp³ Sulfur		pink	1.05 Å	109.47°	-	2	6
ORG-18	Octahedral Metal		gray yellow	1.20 Å	90°	-	2	5
ORG-14	Double bond Oxygen (H-bonded)		red	0.54 Å 0.66 Å	180°	-	5	10
ORG-19	Hydrogen (H-bond)		white	1.50 Å	180°	-	5	10
ORG-20	Connector		black			25	60	150
ORG-21	Double bond lock		transparent			3	12	25
ORG-22	Bond puller		black			1	1	5
