4000Alpha Standard Set

Name: 4000Alpha Standard Set
Brand: HGS Maruzen
SKU: 4000 Alpha
Price: 187.0 USD
Availability: InStock

Please be advised that the new Alpha series sets are NOT compatible with any previous non-Alpha sets or parts. Our model sets have been upgraded to the new “α (Alpha)” series, with a new manufacturer and improved production process.

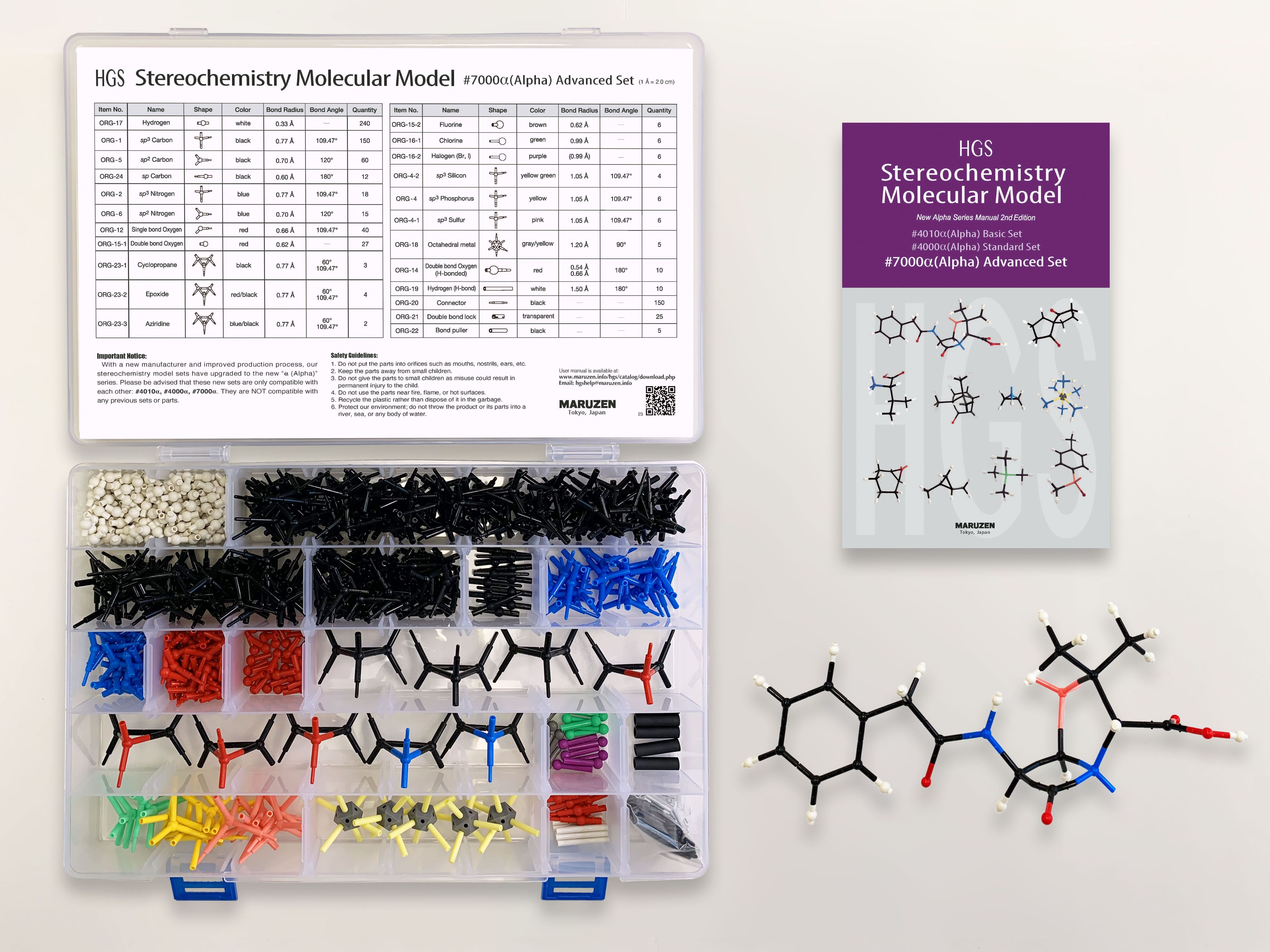

Click this image to view the manual

This set is very useful for stereochemical research in laboratories. Namely, this set contains important atoms and units for Organic Chemistry such as sp³-phosphorus, sp³-sulfur, cyclopropane, and epoxide. In addition, octahedral metal atoms are included, and hence it is possible to construct octahedral metal complexes.

Regular price: $187.00
Regular price
Sale price: $187.00
Unit price: per

Product variants

Item No.	Name	Color	Bond Radius	Bond Angle	Qty
ORG-17-1 (Alpha)	Hydrogen	white	0.33 Å		80
ORG-01 (Alpha)	sp³ Carbon	black	0.77 Å	109.47°	50
ORG-05 (Alpha)	sp² Carbon	black	0.70 Å	120°	24
ORG-24 (Alpha)	sp Carbon	black	0.60 Å	180°	4
ORG-02 (Alpha)	sp³ Nitrogen	blue	0.77 Å	109.47°	6
ORG-06 (Alpha)	sp² Nitrogen	blue	0.70 Å	120°	5
ORG-12 (Alpha)	Single bond Oxygen	red	0.66 Å	109.47°	15
ORG-15-1 (Alpha)	Double bond Oxygen	red	0.62 Å		6
ORG-23-1 Cyclopropan	Cyclopropane	black	0.77 Å	60° 109.47°	1
ORG-23-2 Epoxide	Epoxide	red black	0.77 Å	60° 109.47°	1
ORG-16-1 Alpha	Chlorine	green	0.99 Å		4
ORG-04 Alpha yellowi	sp³ Phosphorus	yellow	1.05 Å	109.47°	2
ORG-04-1 Alpha, pink	sp³ Sulfur	pink	1.05 Å	109.47°	2
ORG-18 Alpha	Octahedral atom	gray yellow	1.20 Å	90°	2
ORG-14 Alpha	Double bond Oxygen (H-bonded)	red	0.54 Å 0.66 Å	180°	5
ORG-19 Alpha	Hydrogen (H-bond)	white	1.50 Å	180°	5
ORG-20 (Alpha)	Connector	black			60
ORG-21 (Alpha)	Double bond lock	transparent			12
ORG-22 (Alpha)	Bond puller	black			1

Product Comparison

Atom

Item No.	Atom Name	Color	Use	Quantity
Item No.	Atom Name	Color	Use	1000α	1001α	1002α	1003α	1013α	1005α
ATM-01	H	white	s	30	24	24	30	30	72
ATM-11	B	orange	sp², dsp³	-	-	-	-	-	1
ATM-02	C	black	sp³	12	12	12	28	12	46
ATM-09	C	black	sp², dsp³	-	3	-	12	6	20
ATM-03	N	blue	sp³	2	6	2	3	1	5
ATM-10	N	blue	sp², dsp³	-	-	-	3	1	5
ATM-04	O	red	sp³	6	2	2	7	4	12
ATM-05	Si	yellowgreen	sp³	-	-	-	-	-	1
ATM-06	P	yellow	sp³	-	-	-	1	-	2
ATM-07	S	pink	sp³	-	-	-	1	1	2
ATM-08	Cl	green	sp³	2	2	-	2	1	4
ATM-17	m	gray	sp, sp³, d²sp³	-	3	1	2	2	4

Bond

Item No.	Bond Length	Color	Use	Quantity
Item No.	Bond Length	Color	Use	1000α	1001α	1002α	1003α	1013α	1005α
BND-02	1.092 1.213	pink	C-H C≡C,C=O	30	25	25	30	30	72
BND-04	1.40	green	C=C,C-O, C(ar)=C(ar)	-	-	-	16	8	38
BND-06	1.54	white	C-C,S-O	20	20	20	40	24	72
BND-07	1.80	yellow	C-P, C-Cl,C-S	-	-	-	8	2	20
BND-09	2.10	white	C-I	-	-	-	-	-	2
BND-101	1.33	blue	C=C	12	6	6	12	10	30

2 In the case of C-(#2 bond)-H, bond length = 1.09Å.
3 In the case of C-(#2 bond)-(non-H atom), bond length = 1.21Å.
1 Bent bond.

Orbital-Plate

Item No.	Color	Use	Quantity
Item No.	Color	Use	1000α	1001α	1002α	1003α	1013α	1005α
OBP-1	blue	p-atomic orbital	-	-	-	4	2	6
OBP-2	green	p-atomic orbital	-	-	-	4	2	6
OBC-1	blue	orbital connector	-	-	-	-	1	3
OBC-2	green	orbital connector	-	-	-	-	1	3

Item No.	Name	Shape	Color	Bond Radius	Bond Angle	Quantity
Item No.	Name	Shape	Color	Bond Radius	Bond Angle	4010	4000	7000
ORG-17-1 (Alpha)	Hydrogen		white	0.33 Å		40	80	240
ORG-01 (Alpha)	sp³ Carbon		black	0.77 Å	109.47°	25	50	150
ORG-05 (Alpha)	sp² Carbon		black	0.70 Å	120°	12	24	60
ORG-24 (Alpha)	sp Carbon		black	0.60 Å	180°	2	4	12
ORG-02 (Alpha)	sp³ Nitrogen		blue	0.77 Å	109.47°	3	6	18
ORG-06 (Alpha)	sp² Nitrogen		blue	0.70 Å	120°	2	5	15
ORG-12 (Alpha)	Single bond Oxygen		red	0.66 Å	109.47°	8	15	40
ORG-15-1 (Alpha)	Double bond Oxygen		red	0.62 Å		3	6	27
ORG-23-1 Cyclopropan	Cyclopropane		black	0.77 Å	60° 109.47°	-	1	3
ORG-23-2 Epoxide	Epoxide		red black	0.77 Å	60° 109.47°	-	1	4
ORG-23-3 Aziridine	Aziridine		blue black	0.77 Å	60° 109.47°	-	-	2
ORG-15-2 Alpha	Fluorine		brown	0.62 Å		-	-	6
ORG-16-1 Alpha	Chlorine		green	0.99 Å		-	4	6
ORG-16-2 Alpha	Halogen (Br or I)		purple	(0.99 Å)		-	-	6
ORG-04-2 Alpha yello	sp³ Silicon		yellowgreen	1.05 Å	109.47°	-	-	4
ORG-04 Alpha yellowi	sp³ Phosphorus		yellow	1.05 Å	109.47°	-	2	6
ORG-04-1 Alpha, pink	sp³ Sulfur		pink	1.05 Å	109.47°	-	2	6
ORG-18 Alpha	Octahedral atom		gray yellow	1.20 Å	90°	-	2	5
ORG-18 -TB Assembled	Trigonal bipyramidal atom		black yellow	1.32 Å (axial) 1.27 Å (equatorial)	90° 120°	-	-	5
ORG-14 Alpha	Double bond Oxygen (H-bonded)		red	0.54 Å 0.66 Å	180°	-	5	10
ORG-19 Alpha	Hydrogen (H-bond)		white	1.50 Å	180°	-	5	10
ORG-20 (Alpha)	Connector		black			25	60	150
ORG-21 (Alpha)	Double bond lock		transparent			3	12	25
ORG-22 (Alpha)	Bond puller		black			1	1	5
