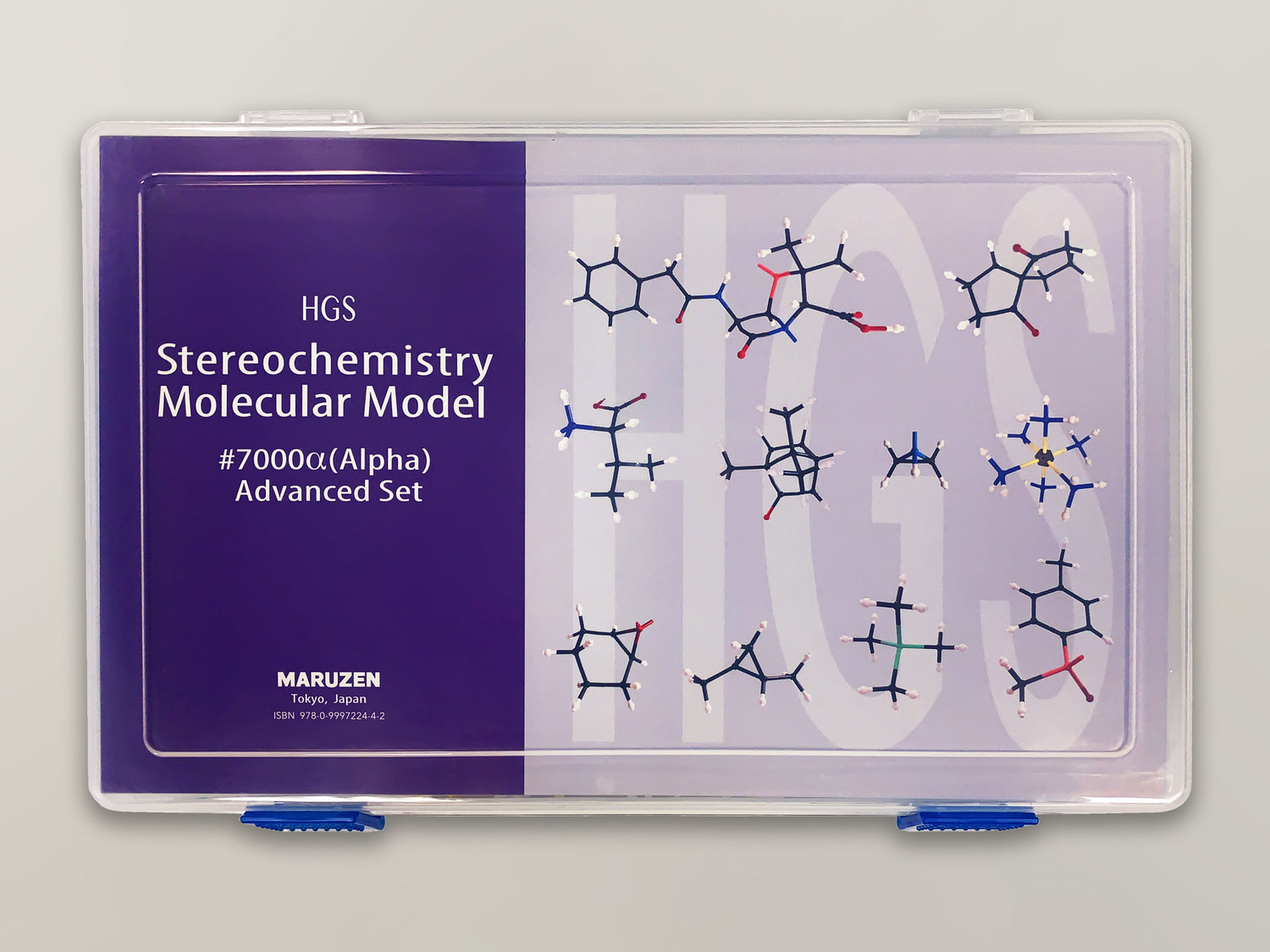

7000Alpha Advanced Set
Please be advised that the new Alpha series sets are NOT compatible with any previous non-Alpha sets or parts. Our model sets have been upgraded to the new “α (Alpha)” series, with a new manufacturer and improved production process.
Click this image to view the manualThis is the largest set of the stereochemistry molecular models and very useful in the various fields of chemistry. The previous set #7000 will be updated and simplified to be well-suited for various organic, inorganic, and biochemical molecules. This set contains sp3-silicon and sp3-sulfur atoms and aziridine units also.
- Regular price
- $560.00
- Regular price
-
- Sale price
- $560.00
- Unit price
- per
Couldn't load pickup availability
Contents
| Item No. | Name | Shape | Color | Bond Radius | Bond Angle | Qty |
|---|---|---|---|---|---|---|
| ORG-17 | Hydrogen |
|
white
|
0.33 Å | 240 | |
| ORG-1 | sp³ Carbon |
|
black
|
0.77 Å | 109.47° | 150 |
| ORG-5 | sp² Carbon |
|
black
|
0.70 Å | 120° | 60 |
| ORG-24 | sp Carbon |
|
black
|
0.60 Å | 180° | 12 |
| ORG-2 | sp³ Nitrogen |
|
blue
|
0.77 Å | 109.47° | 18 |
| ORG-6 | sp² Nitrogen |
|
blue
|
0.70 Å | 120° | 15 |
| ORG-12 | Single bond Oxygen |
|
red
|
0.66 Å | 109.47° | 40 |
| ORG-15-1 | Double bond Oxygen |
|
red
|
0.62 Å | 27 | |

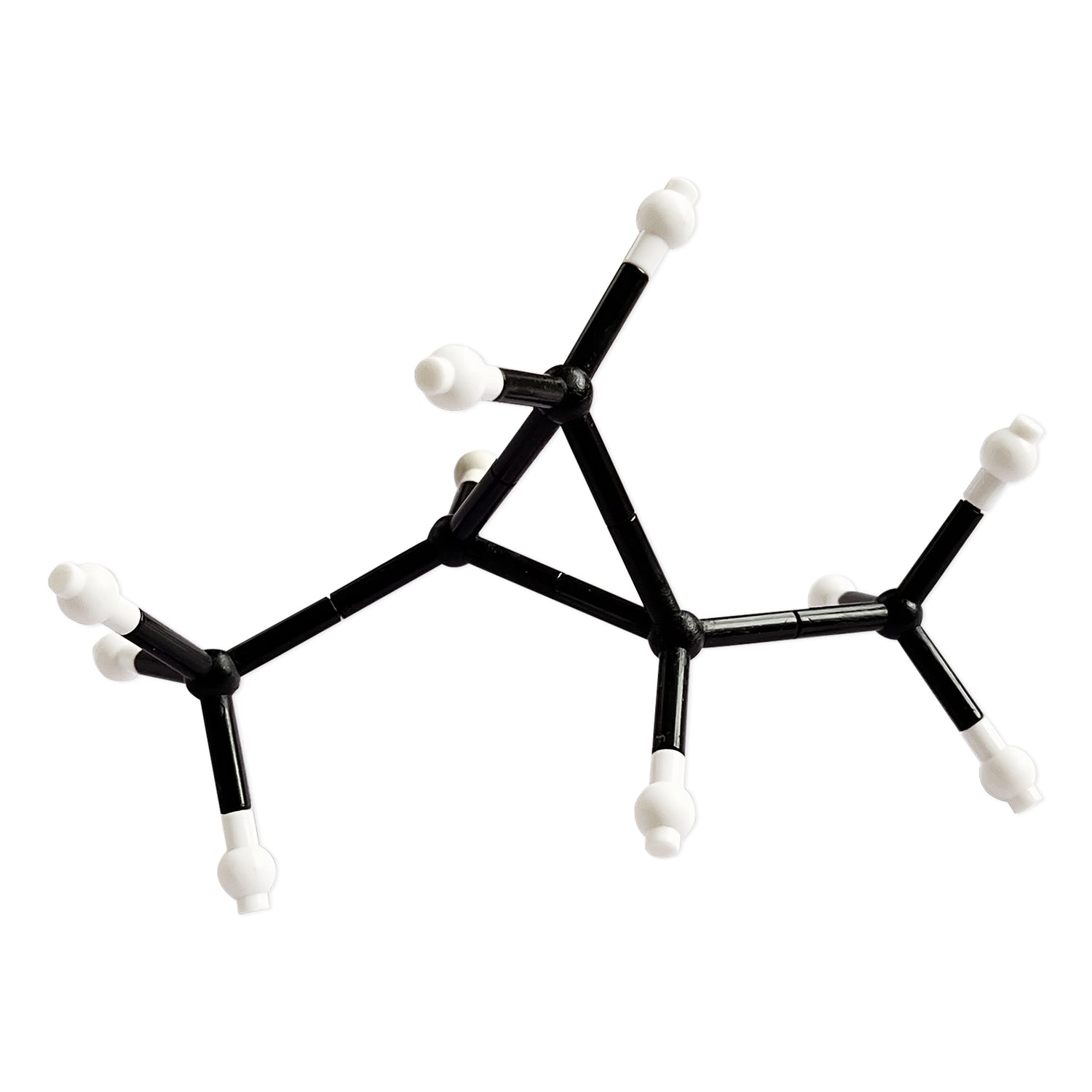

| ORG-23-1 | Cyclopropane |
|
black
|
0.77 Å |
60° 109.47° |
3 |
| ORG-23-2 | Epoxide |
|
red
black
|
0.77 Å |
60° 109.47° |
4 |
| ORG-23-3 | Aziridine |
|
blue
black
|
0.77 Å |
60° 109.47° |
2 |
| ORG-15-2 | Fluorine |
|
brown
|
0.62 Å | 6 | |
| ORG-16-1 | Chlorine |
|
green
|
0.99 Å | 6 | |
| ORG-16-2 | Halogen ( Br or I ) |
|
purple
|
(0.99 Å) | 6 | |

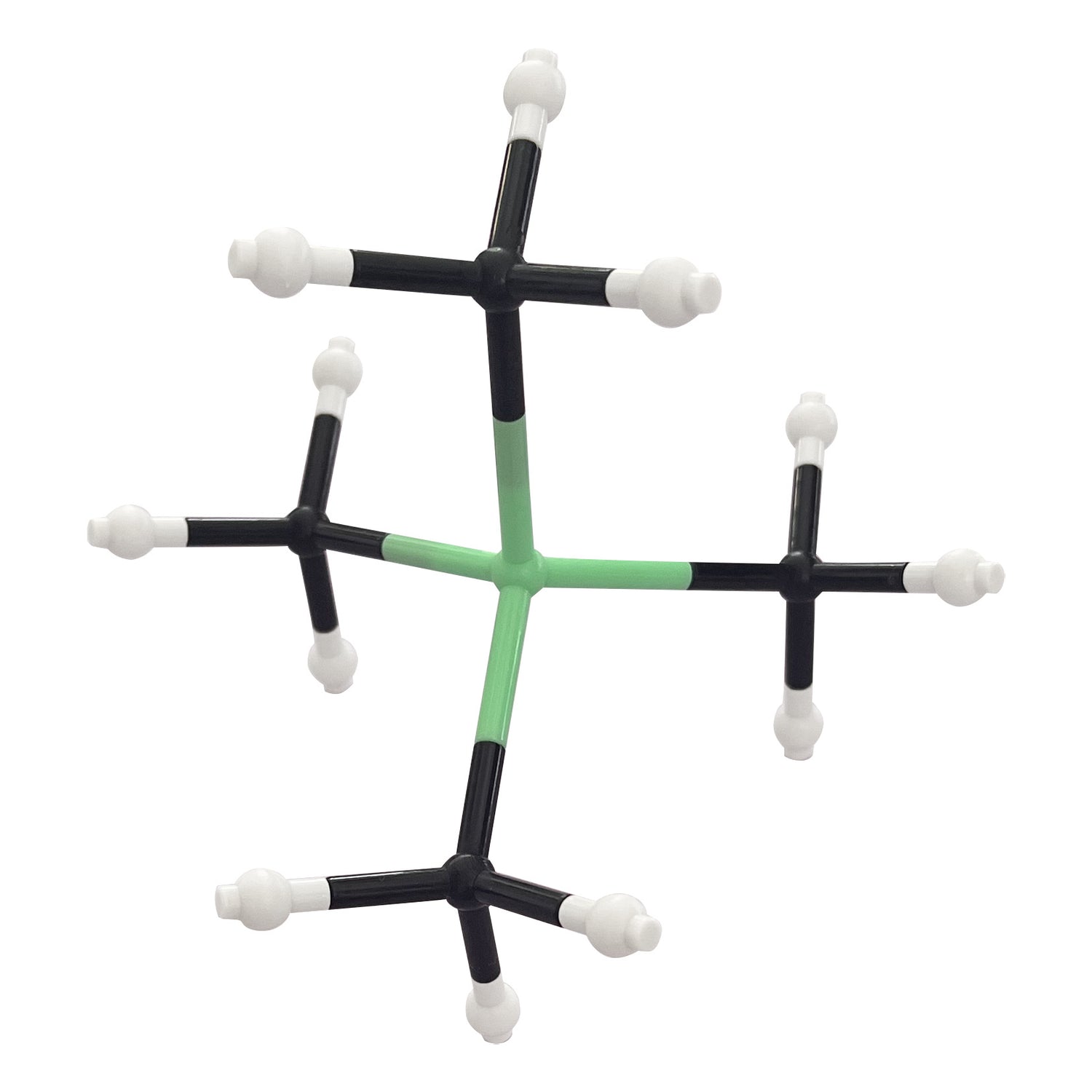

| ORG-4-2 | sp³ Silicon |
|
yellowgreen
|
1.05 Å | 109.47° | 4 |
| ORG-4 | sp³ Phosphorus |
|
yellow
|
1.05 Å | 109.47° | 6 |
| ORG-4-1 | sp³ Sulfur |
|
pink
|
1.05 Å | 109.47° | 6 |

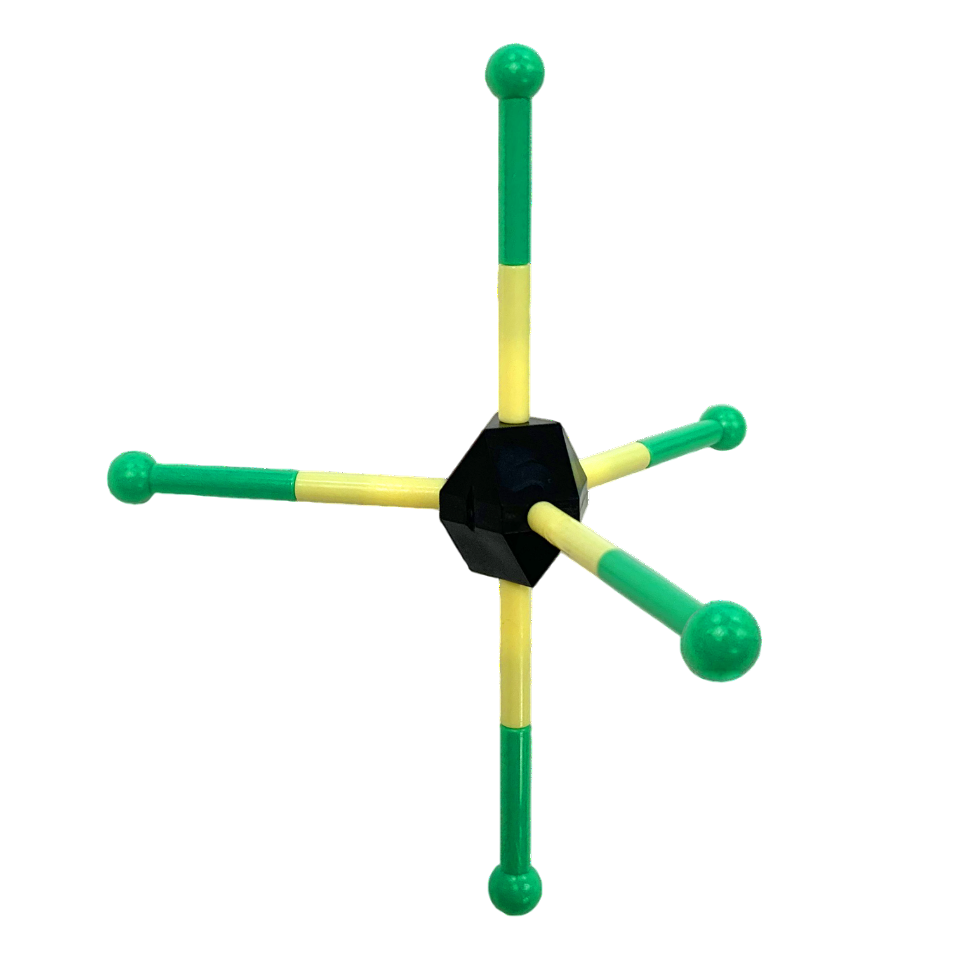

| ORG-18 | Octahedral Metal |
|
gray
yellow
|
1.20 Å | 90° | 5 |
| ORG-14 | Double bond Oxygen (H-bonded) |
|
red
|
0.54 Å 0.66 Å |
180° | 10 |
| ORG-19 |
Hydrogen (H-bond) |
|
white
|
1.50 Å | 180° | 10 |
| ORG-20 | Connector |
|
black
|
150 | ||
| ORG-21 | Double bond lock |
|
transparent
|
25 | ||
| ORG-22 | Bond puller |
|
black
|
5 |
Product Comparison
Atom
| Item No. | Atom Name | Color | Use | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1000α | 1001α | 1002α | 1003α | 1013α | 1005α | ||||
| ATM-01 | H |
white
|
s | 30 | 24 | 24 | 30 | 30 | 72 |
| ATM-11 | B |
orange
|
sp², dsp³ | - | - | - | - | - | 1 |
| ATM-02 | C |
black
|
sp³ | 12 | 12 | 12 | 28 | 12 | 46 |
| ATM-09 | C |
black
|
sp², dsp³ | - | 3 | - | 12 | 6 | 20 |
| ATM-03 | N |
blue
|
sp³ | 2 | 6 | 2 | 3 | 1 | 5 |
| ATM-10 | N |
blue
|
sp², dsp³ | - | - | - | 3 | 1 | 5 |
| ATM-04 | O |
red
|
sp³ | 6 | 2 | 2 | 7 | 4 | 12 |
| ATM-05 | Si |
yellowgreen
|
sp³ | - | - | - | - | - | 1 |
| ATM-06 | P |
yellow
|
sp³ | - | - | - | 1 | - | 2 |
| ATM-07 | S |
pink
|
sp³ | - | - | - | 1 | 1 | 2 |
| ATM-08 | Cl |
green
|
sp³ | 2 | 2 | - | 2 | 1 | 4 |
| ATM-17 | m |
gray
|
sp, sp³, d²sp³ | - | 3 | 1 | 2 | 2 | 4 |
Bond
| Item No. | Bond Length | Color | Use | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1000α | 1001α | 1002α | 1003α | 1013α | 1005α | ||||
| BND-02 |
1.092 1.213 |
pink
|
C-H C≡C,C=O |
30 | 25 | 25 | 30 | 30 | 72 |
| BND-04 | 1.40 |
green
|
C=C,C-O, C(ar)=C(ar) |
- | - | - | 16 | 8 | 38 |
| BND-06 | 1.54 |
white
|
C-C,S-O | 20 | 20 | 20 | 40 | 24 | 72 |
| BND-07 | 1.80 |
yellow
|
C-P, C-Cl,C-S |
- | - | - | 8 | 2 | 20 |
| BND-09 | 2.10 |
white
|
C-I | - | - | - | - | - | 2 |
| BND-101 | 1.33 |
blue
|
C=C | 12 | 6 | 6 | 12 | 10 | 30 |
2 In the case of C-(#2 bond)-H, bond length = 1.09Å.
3 In the case of C-(#2 bond)-(non-H atom), bond length = 1.21Å.
1 Bent bond.
Orbital-Plate
| Item No. | Name | Shape | Color | Bond Radius | Bond Angle | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4010 | 4000 | 7000 | |||||||||
| ORG-17 | Hydrogen |
|
white
|
0.33 Å | 40 | 80 | 240 | ||||
| ORG-1 | sp³ Carbon |
|
black
|
0.77 Å | 109.47° | 25 | 50 | 150 | |||
| ORG-5 | sp² Carbon |
|
black
|
0.70 Å | 120° | 12 | 24 | 60 | |||
| ORG-24 | sp Carbon |
|
black
|
0.60 Å | 180° | 2 | 4 | 12 | |||
| ORG-2 | sp³ Nitrogen |
|
blue
|
0.77 Å | 109.47° | 3 | 6 | 18 | |||
| ORG-6 | sp² Nitrogen |
|
blue
|
0.70 Å | 120° | 2 | 5 | 15 | |||
| ORG-12 | Single bond Oxygen |
|
red
|
0.66 Å | 109.47° | 8 | 15 | 40 | |||
| ORG-15-1 | Double bond Oxygen |
|
red
|
0.62 Å | 3 | 6 | 27 | ||||
| ORG-23-1 | Cyclopropane |
|
black
|
0.77 Å |
60° 109.47° |
- | 1 | 3 | |||
| ORG-23-2 | Epoxide |
|
red
black
|
0.77 Å |
60° 109.47° |
- | 1 | 4 | |||
| ORG-23-3 | Aziridine |
|
blue
black
|
0.77 Å |
60° 109.47° |
- | - | 2 | |||
| ORG-15-2 | Fluorine |
|
brown
|
0.62 Å | - | - | 6 | ||||
| ORG-16-1 | Chlorine |
|
green
|
0.99 Å | - | 4 | 6 | ||||
| ORG-16-2 | Halogen ( Br or I ) |
|
purple
|
(0.99 Å) | - | - | 6 | ||||
| ORG-4-2 | sp³ Silicon |
|
yellowgreen
|
1.05 Å | 109.47° | - | - | 4 | |||
| ORG-4 | sp³ Phosphorus |
|
yellow
|
1.05 Å | 109.47° | - | 2 | 6 | |||
| ORG-4-1 | sp³ Sulfur |
|
pink
|
1.05 Å | 109.47° | - | 2 | 6 | |||
| ORG-18 | Octahedral Metal |
|
gray
yellow
|
1.20 Å | 90° | - | 2 | 5 | |||
| ORG-14 | Double bond Oxygen (H-bonded) |
|
red
|
0.54 Å 0.66 Å |
180° | - | 5 | 10 | |||
| ORG-19 |
Hydrogen (H-bond) |
|
white
|
1.50 Å | 180° | - | 5 | 10 | |||
| ORG-20 | Connector |
|
black
|
25 | 60 | 150 | |||||
| ORG-21 | Double bond lock |
|
transparent
|
3 | 12 | 25 | |||||
| ORG-22 | Bond puller |
|
black
|
1 | 1 | 5 | |||||
